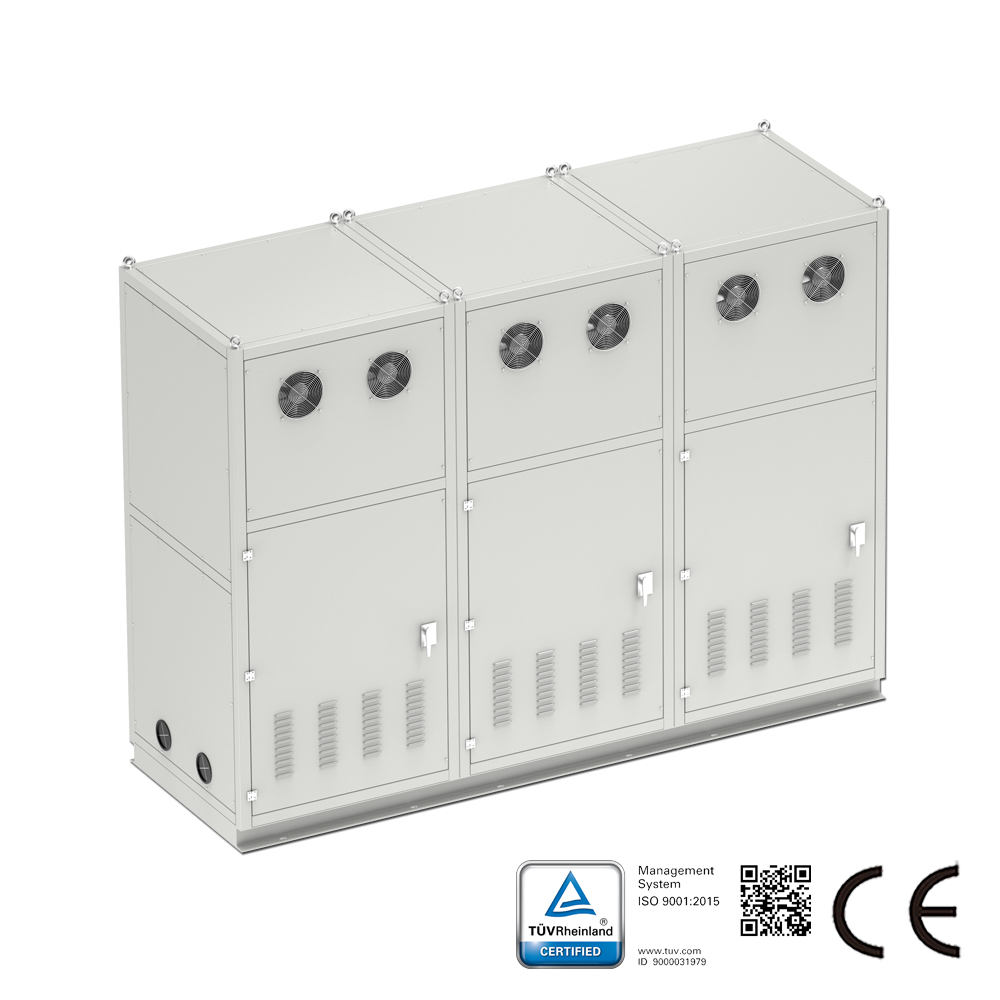

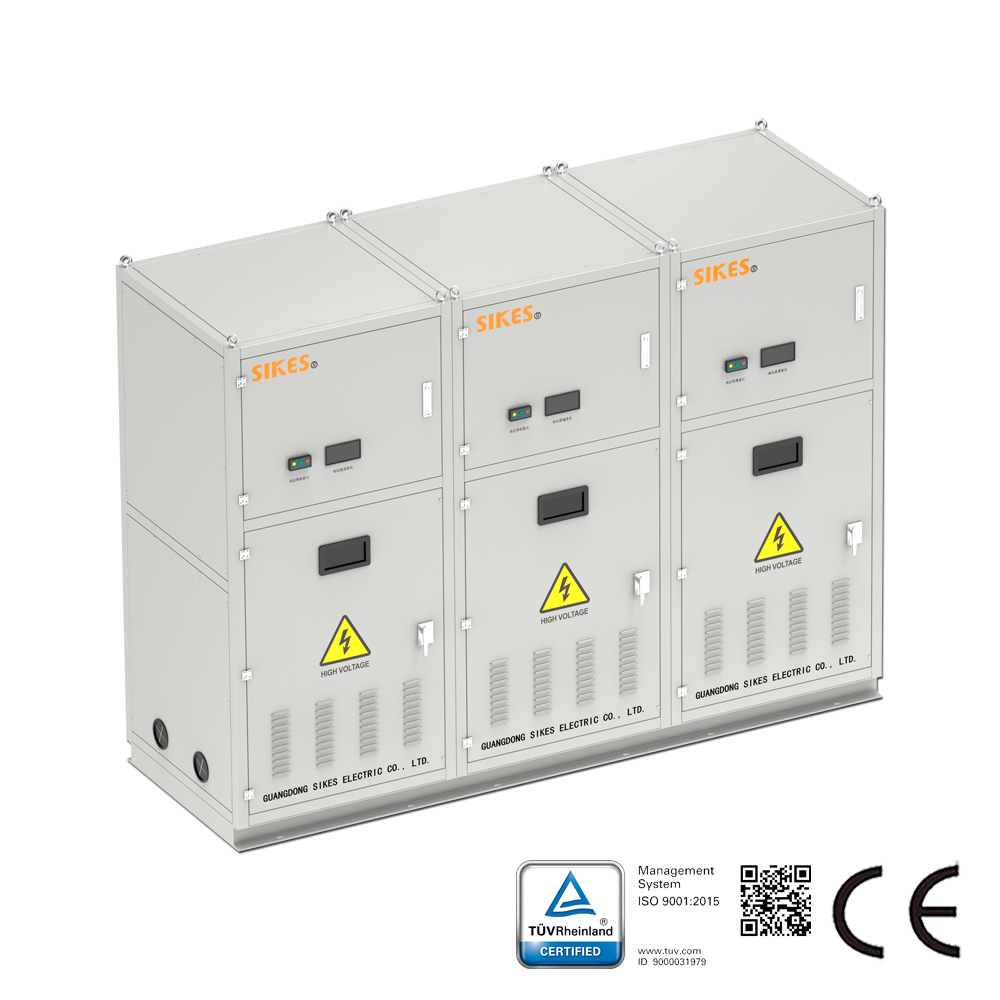

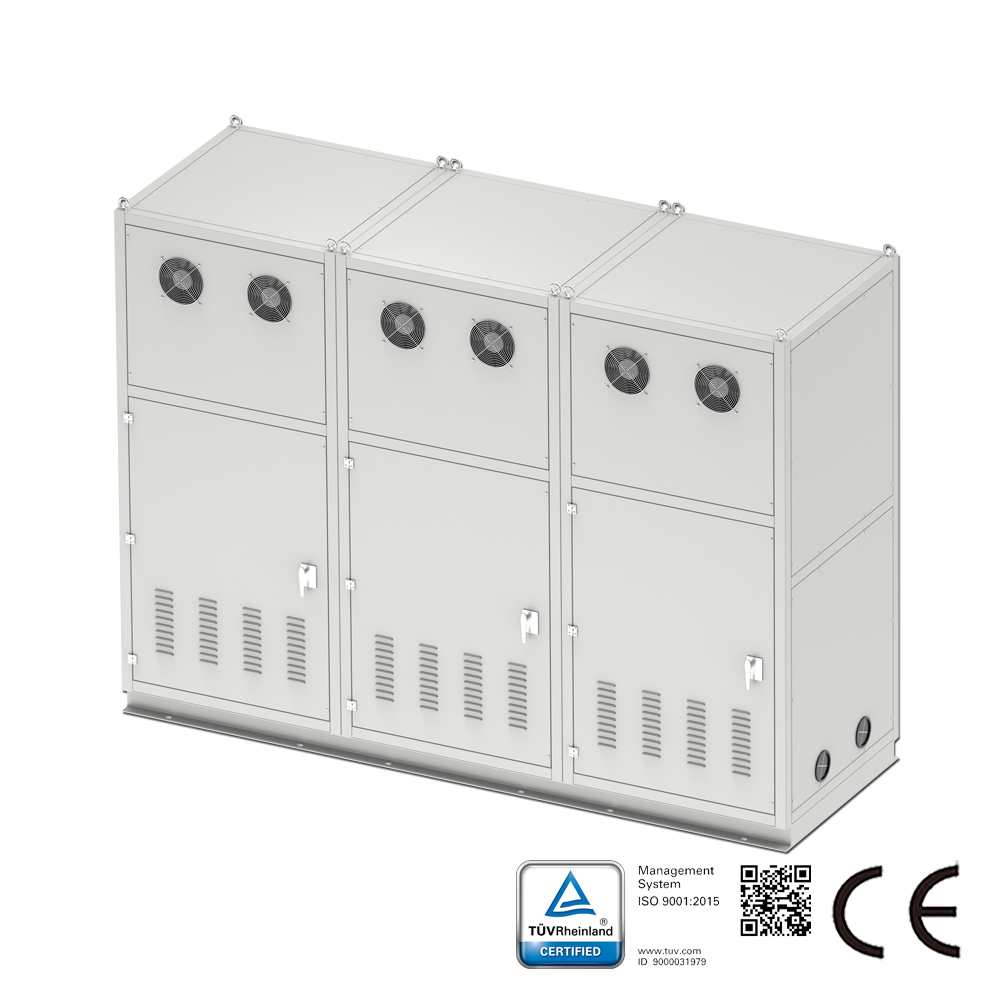

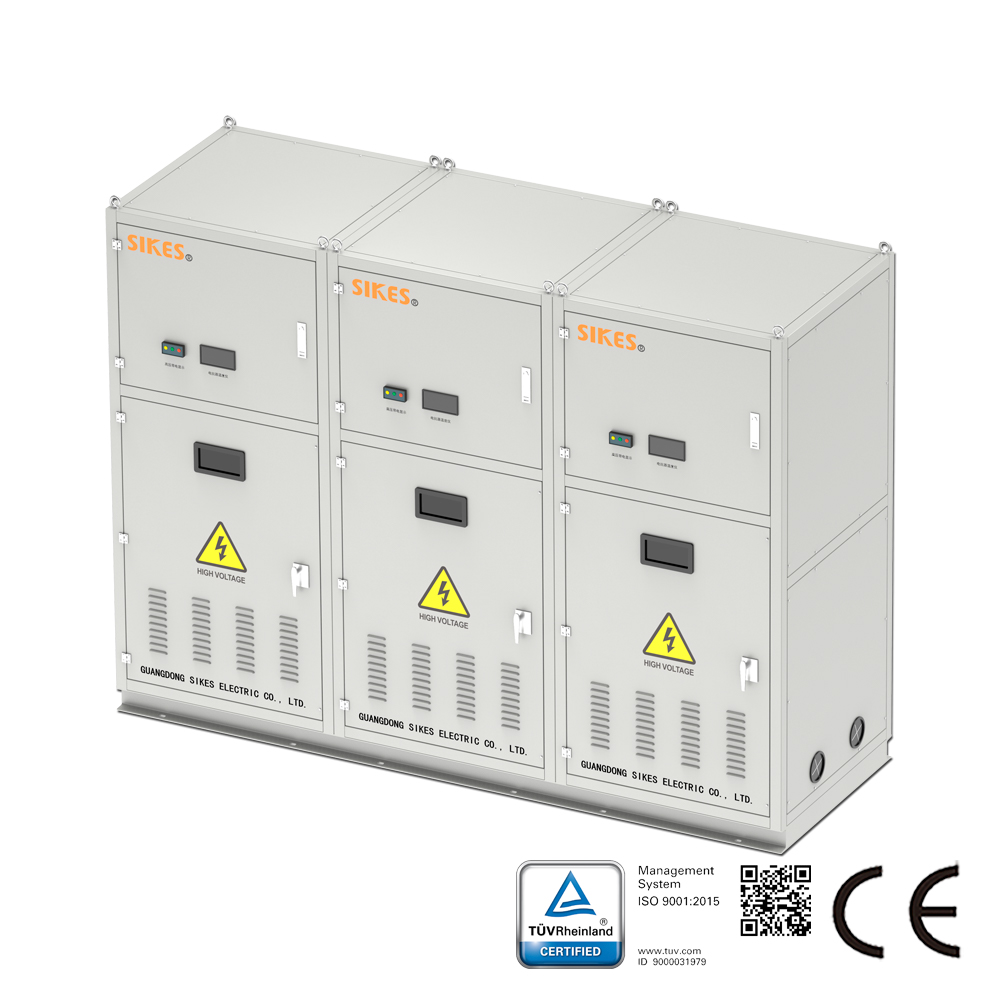

Filter Harmonik Pasif, THDi < 5%, Arus Terukur 14A, Tegangan Terukur 11.5KV

Model: SKS-HFI-0014-14C5/05-A0
Filter harmonik pasif Sikes dirancang untuk hampir semua jenis aplikasi elektronik dengan penyearah ujung depan enam pulsa. Filter ini dapat secara efisien mengurangi distorsi arus harmonik ke tingkat yang diperlukan.
Pertanyaan Produk atau Solusi Obrolan Langsung
Bagikan ke:

Spesifikasi

AC/DC AC
Koneksi Batang bus tembaga
Kelas IP IP20
Rentang Arus Nominal (A) 14
Rentang Tegangan Nominal (V) 11.5K
Frekuensi Operasi 50 Hz
Fase 3 Fase
THDi <5%
Jenis optik Pasif

Detail Produk

Filter harmonik pasif Sikes dirancang untuk hampir semua jenis aplikasi elektronik dengan penyearah ujung depan enam pulsa. Filter ini dapat secara efisien mengurangi distorsi arus harmonik ke tingkat yang diperlukan.

Fitur

Passive Harmonic Filter Product Features:
Quick installation and easy commissioning design;
Cost-effective passive harmonic filter;
Helps to comply with international power quality standards.

Technical Standard:
IEC61000, GB/T14549-93, IEEE 519

Passive Harmonic Filter Technical Characteristics:
Norminal operating voltage:11.5KV;
Operating Frequency:50Hz(60Hz upon request);
THDi<<5% (system requirements:TDHv<2% ,line voltage unbalance<1%);
Efficiency:98% to 99% @ norminal line voltage;
Ambient temperature:-25 to +45℃.

Aplikasi

Aplikasi tipikal: catu daya tiga fase non-linear di mana risiko potensial tinggi karena kelebihan beban termal dan listrik yang disebabkan oleh arus harmonik.

Aplikasi Filter Harmonik Pasif:
Pengisi Daya Cepat DC;
Instalasi HVAC;
Aplikasi kipas dan pompa;
Otomasi industri dan peralatan robotik;
Penggerak motor AC dan DC & inverter frekuensi;
Peralatan dengan penyearah ujung depan enam pulsa.
